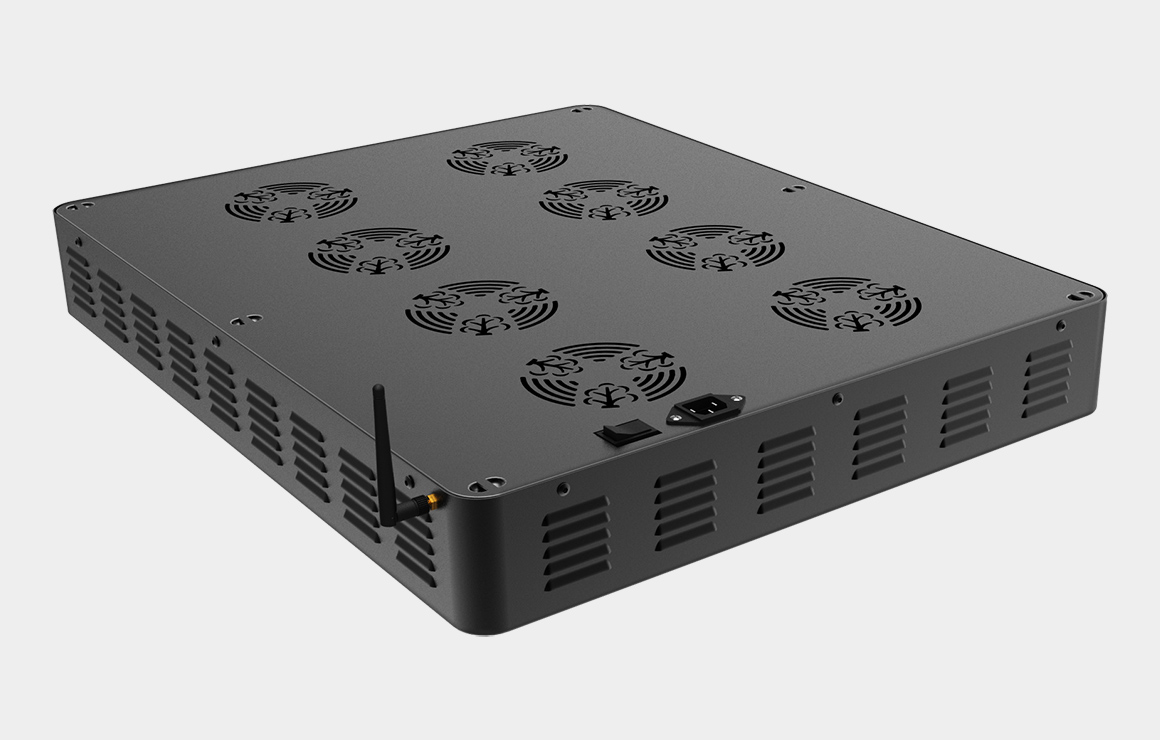

Kingdom Grow Light – Alpha 2×4
Product Data Sheet
| Model No. | Alpha 2×4 |
|---|---|
| LED Ratio Red(660nm)/Blue(460nm) |
R/B=3:1 or customized |
| Input Voltage | AC100-240V |
| LED Qty | 192 |
| Rated Wattage | 192×3W |
| Actual Wattage | 402W±5% |
| Lumen Output(lm) | 9600 |
| Size(mm) | 456×566×75 |
| Weight(kg) | 11.3 |
Design Details
Main Features
- Built in isolated power supply covering power consumption 120W - 1300W

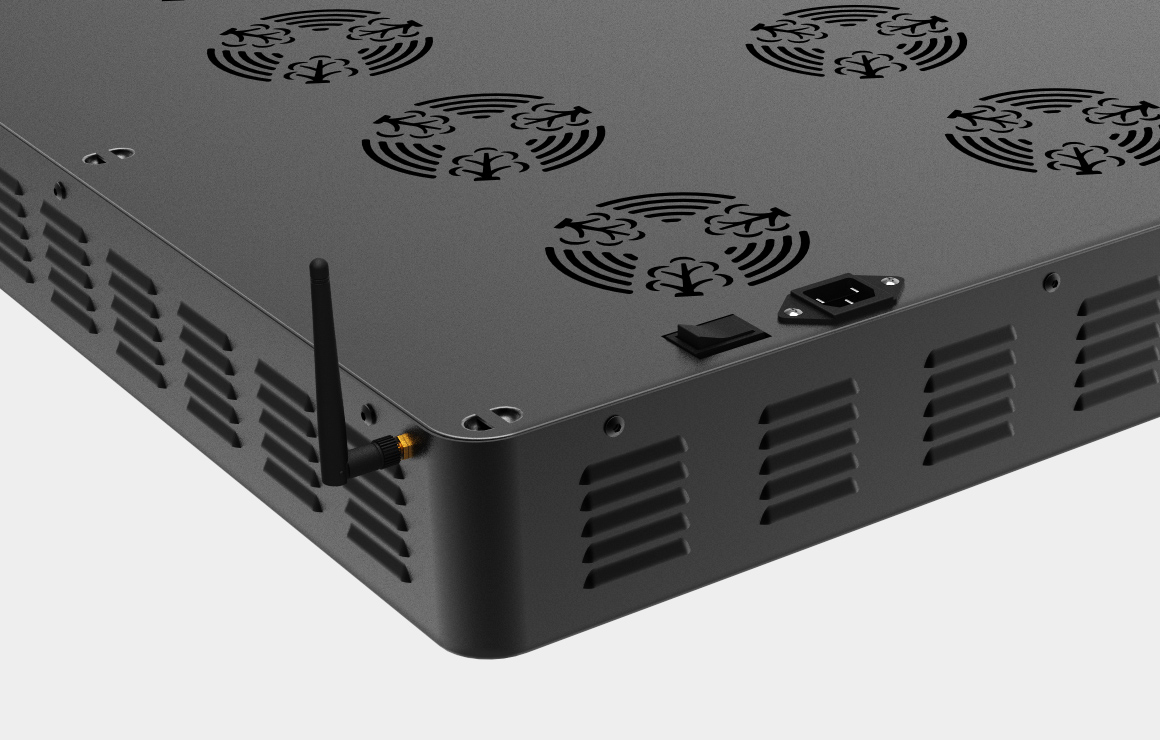

- Built in quality fans and heat sink ensures efficient heat dissipation
- Input voltage AC100-240V and 50/60 Hz Frequency, workable at any country
- Working humidity 10-95%
- Amperage 700mA
- 60° 90° and 120° optical lenses
- Connectivity: Wifi & Zigbee
- 2-6 channels of spectrum regulating and intensity adjusting for different grow phases
- Module design and assembly for convenient maintenance
- Fully customizable spectrum
- 50000 hours LED lifespan
- Patent products, CE & RoHS certified
- 3-year warranty
Smart Controlling System
- APP (iOS available now. Android and Windows versions will be made upon customers’ request). Please get this APP
by searching “grow light” in App Store. - Wifi (IEEE802.11) + ZigBee (IEEE802.15.4)
- 2-6 channels of spectrum regulating and intensity adjusting for different grow phases
- Allow to adjust light source intensity and control customized spectrum
- Real-time control, read the internal temperature of the light
- Alarming and the light goes off once its temperature over 55℃
- Position the failed light
- Group lights control, single light control
- Editable and programmable
Application
- Application for all phases of clone, grow, blooming and fruiting
- Applicable with water solution culture and soil culture. Wide applications in greenhouse, garden, pot culture, water soluble breeding, seeding and growing stem, sportsfield grass growth, etc.
Packing
- Carton packing with interior EPE protection

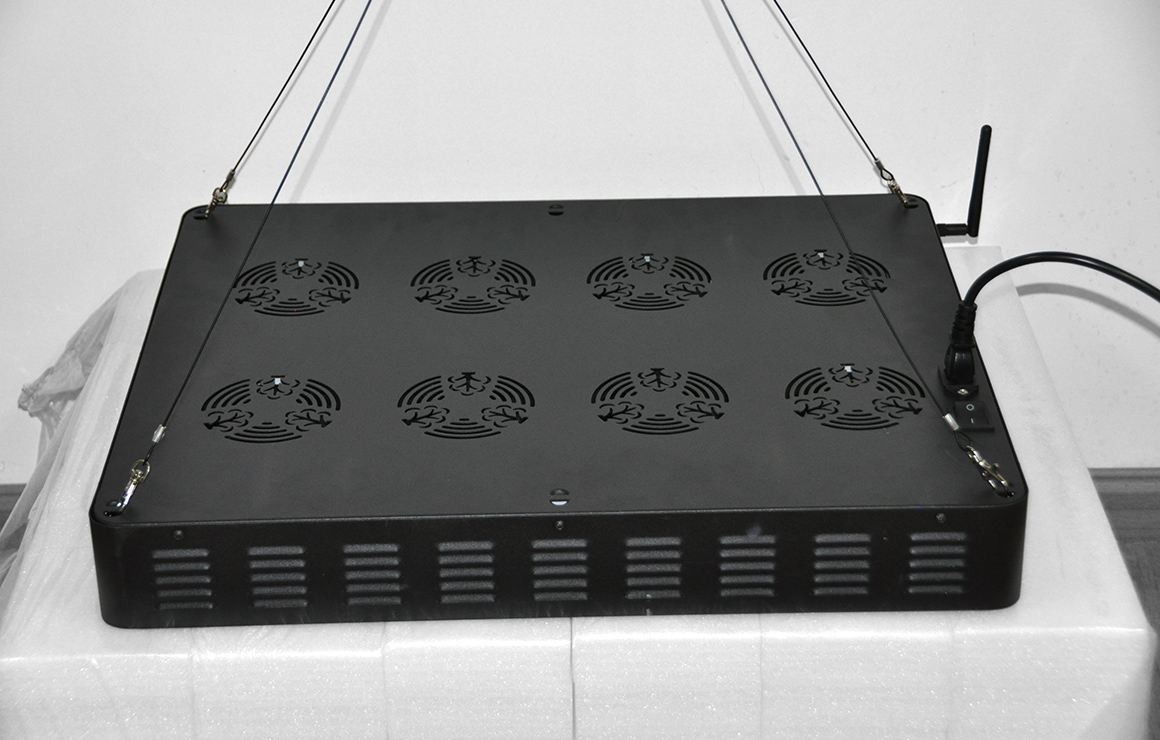

- Grow Light x1, power line x1, and hanging kit x1
Testing Condition
- Temperature: 20℃
- Humidity: 60%
- Distance to Light Source (m):1m
- Light warm-up period (min): 60 min
- Height of plant (mm): 5mm

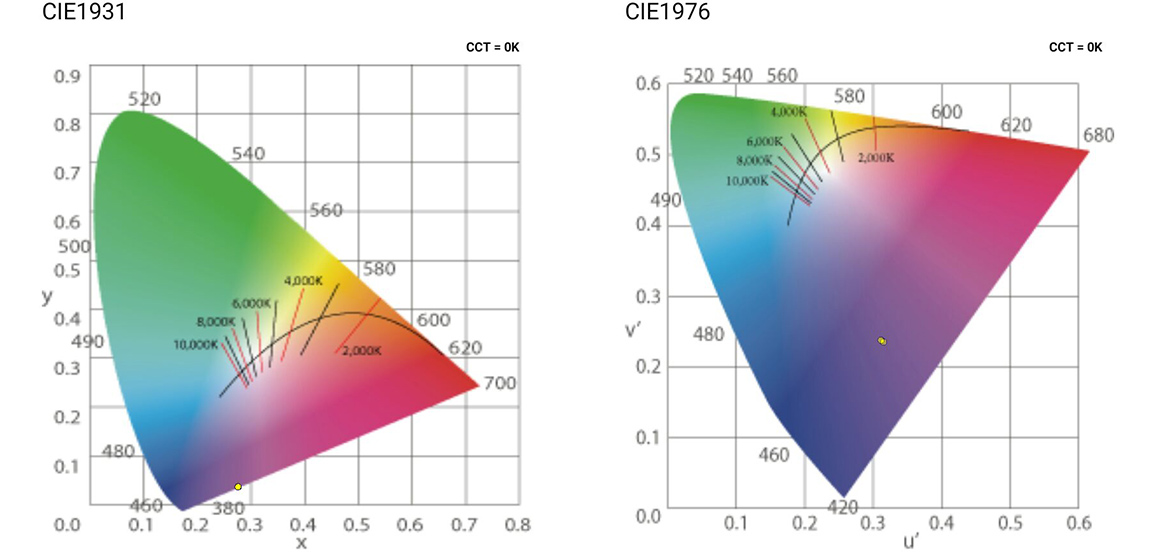

Testing Result:
