B:    SMT capacity
  • SMT, Through Hole assembly
  • Single/double side SMT, Single/double sides mixture assembly
  • Accuracy: <±40μm, under the condition of 3σ,CPK≥1
  • Angle accuracy <±0.06°
  • Components Size:SMT 01005 to 100mm×80mm
  • Minimum width/space of QFP: 0.15mm/0.3mm;
  • Minimum diameter /space of BGA: 0.2mm/0.35mm
  • Maximum part's highness : 18mm
  • Maximum part's weight:30g
  • PCB Size:50mm×50mm~450mm×406mm
  • PCB Thickness:0.5mm~4.5mm
  • Placer speed:60000chips/hour
  • Feeders number:140 piece of 8 mm reel feeders,28 of IC tray feeders

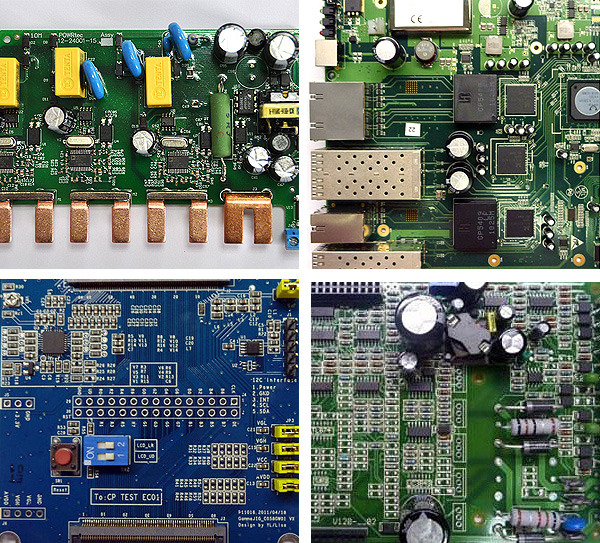

PCBA

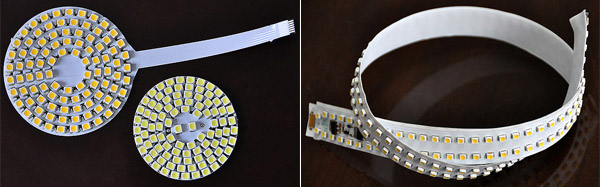

FPC
